SOLAR COLLECTOR for hot water.

Solar collector 100L for hot water
A solar system that can be used both in homes and summer cottages.
The system is placed in a sunny place on the ground or on roofs.

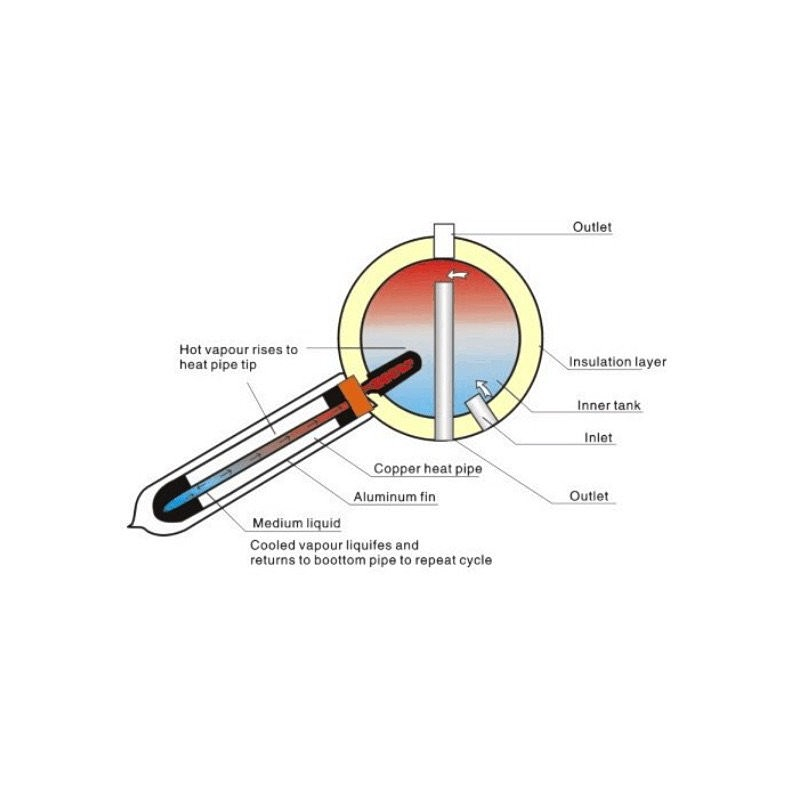

The vaccum tube of the solar collector has a thin coating that traps the sun's rays.
The vaccum tubes contain copper tubes with liquid that evaporates even at low temperatures.
The steam moves the heat through the heat pipe and thus heats the water in the tank.

The tank is well insulated and retains heat up to 72 hours. The temperature can rise to 95 degrees.
The system works even in low solar radiation and can be used all year round even at low temparatures down to -40 degrees.
Approval: SOLAR Keymark EN12976

Carton size
Tanks 125*50*50
Score 185*20*10
Pipe 190*28*23

FACTS

• Outer tank: drawbench silver steel 0.4mm

• Inner tank:SUS304-2B 1.2mm

• Water tank thermal blind pipe:316L stainless steel pipe

• Heat pipe condensing end:14mm, Frost resistance≥50°C

• Insulation layer: 141bPolyurethane

• Frame:Galvanized steel 1.5mm

• Pressure range:0.7MPa

• Passport SOLAR Keymark (EN12976) certificateAccessories

• included: TP valve, One way valve, Magnesium rod,1500W electrical heating, Thermally conductive silicone.
